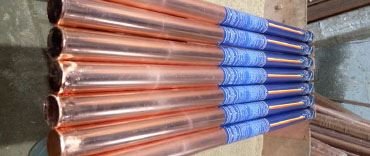

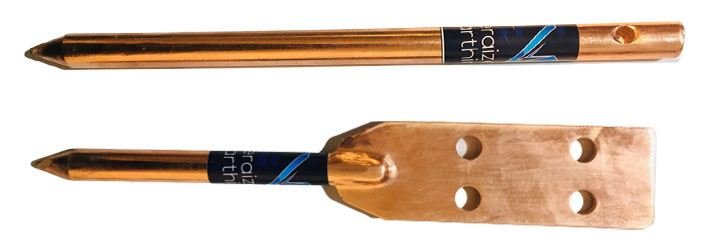

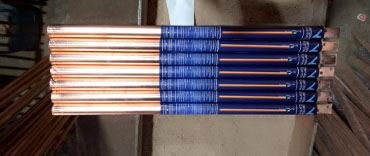

Copper Bonded Electrode Manufacturer, Supplier, and Exporter in India
Veraizen Earthing is one of the topmost Copper Bonded Electrode Manufacturers and Suppliers in Mumbai, India. Copper Bonded Electrode is a highly advanced product that is based on worldwide technology and offers improved oxidation resistance as well as a longer product life than standard GI Electrodes. Our Copper Bonded Earthing Electrode can be used to ground buildings and foundations in a variety of situations, including changes in soil temperature, humidity, PH value, and so on. The copper on the Copper Bonded Electrode is 100/250 micron thick, providing excellent corrosion resistance. It ensures long product life. We are also the suppliers of Copper Bonded Threaded, and so on.
Specifications:
| Copper Bonded Electrode | Specifications |
| Rod Dia(mm) | 14.2, 17.2, 25 |
| Length(mm) | 1000, 2000 & 3000 |
| Clamp | 50x6 |
| Models | Outer Diameter (MM)) | Length(MM) | Internal Dia (MM) | Connection Terminal Hole Die (MM)x No. of Hole | M.O.C |
|---|---|---|---|---|---|
| SICB-19/1 | 46-50 mm | 1000 | 27 mm | 10 X 02 | Copper Bonded |
| SICB-19/2 | 46-50 mm | 2000 | 27 mm | 10 X 02 | Copper Bonded |
| SICB-19/3 | 46-50 mm | 3000 | 27 mm | 12 X 02 | Copper Bonded |
| SICB-39/1 | 76-80 mm | 1000 | 41 mm | 12 X 02 | Copper Bonded |
| SICB-39/2 | 76-80 mm | 2000 | 41 mm | 12 X 02 | Copper Bonded |
| SICB-39/3 | 76-80 mm | 3000 | 41 mm | 12 X 02 | Copper Bonded |
Features:
- CPRI Tested
- Maintenance Free
- High Strength
- Long Durable Life
- Copper Coated rod as per Standard
- 100-250 micron Copper Coating
- Anti-Corrosive & Highly Conductive
- Continuous electroplating processing
- Values over the life of the product
- Reduced installation area and time
- Variable choices are manufactured as required by the customers
About Copper Bonded Electrode
Veraizen Earthing are a leading manufacturer and supplier of a wide range of Copper Bonded Electrode for our clients. Our highly qualified team and state of art techniques enable us to provide you with unique Copper Bonded Electrode units for your valuable utilities. These products are made with high-quality raw materials purchased from the most reliable vendors in the market. The products that we provide to our clients are created under the guidance of our quality check experts who ensure that we deliver only good quality products to our clients. These Copper Bounded Electrode are in high demand all around the world and are widely appreciated for their efficiency, high conductivity and low maintenance.
Copper Bonded Electrode Uses
Copper Bonded Electrode are widely used all over the world in different industries. Here are the top uses of Copper Bonded Electrode -
- Protect personnel against electrical hazards like electric shock and electrocution
- Safeguards protect electrical devices, appliances, power tools, machinery etc. from current leakage
- Damage from lightning to structures, installations and the entire electric system by using Lightning Arresters.
- Prevents fire in the electrical systems
- Avoids interference with communication circuits
