Copper Pipe in Pipe Technology Manufacturer

Copper Pipe in Pipe Technology Manufacturer, Supplier, and Exporter in India

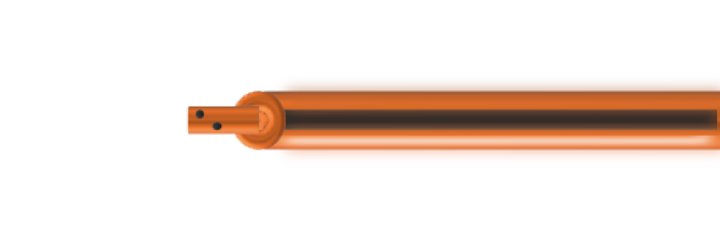

Veraizen Earthing are leading Copper Pipe in Pipe Technology Manufacturer and Supplier in Mumbai, India. Pipe in Pipe Technology uses properly galvanized coaxial pipes to prevent the electrode from getting corroded. Copper Pipe in Pipe Earth Electrode are two pipes which are made of one smaller diameter copper pipe fitted into a larger diameter copper pipe. Both the pipes are subjected to hot dip galvanization of 150 - 250 microns the empty space in the pipes will be filled with a specially formulated Crystalline Conductive mixture. To increase the service life of these electrodes, the cavity within and inside the pipes is compactly filled with a highly conductive and anti-corrosive material. The Copper Pipe in Pipe Technology contains a heterogeneous rich crystalline mixture that protects the main earth electrode from corrosion in the soil. We are also known for Copper Strip in Pipe Supplier, and so on.


Copper Pipe in Pipe Technology Specifications
Rod Dia(mm) 48, 76
Inner Pipe Dia(mm) 25, 32
Length(mm) 1000, 2000 & 3000
Terminal 35x6, 50x6

Technical Specification:

Pure Copper Outer Dia/Wall Thickness in MM Inner Dia/Wall Thickness in MM Length in Metres Grade
48mm / 3.2mm 26.9mm / 2.3mm 2 & 3 99.99% Electrolytic Copper
76mm / 3.6mm 42.4mm / 2.6mm 2 & 3 99.99% Electrolytic Copper

About Copper Pipe in Pipe Technology

With the rich experience in market, Veraizen Earthing are manufacturer and supply a extensive range of Copper Pipe In Pipe Technology in Mumbai, India. We manufacture Pipe in Pipe Earthing Electrodes with larger fault capacity that are accepted by major industrial complexes, power utilities, and commercial complexes on a technical level. This range is produced in a variety of methods. These electrodes are virtually indestructible. Pipe in Earthing Eelectrodes offer longer life and superior values compared to standard earthing system. Pipe in Pipe Technology are available in a variety of sizes and materials, such as GI, Copper, and Copper Bonded.

Copper Pipe in Pipe Technology Uses

Copper Pipe in Pipe Technology are widely used all over the world in different industries. Here are the top uses of Copper Pipe in Pipe Technology -

  • Protect personnel against electrical hazards like electric shock and electrocution
  • Safeguards protect electrical devices, appliances, power tools, machinery etc. from current leakage
  • Damage from lightning to structures, installations and the entire electric system by using Lightning Arresters.
  • Prevents fire in the electrical systems
  • Avoids interference with communication circuits
