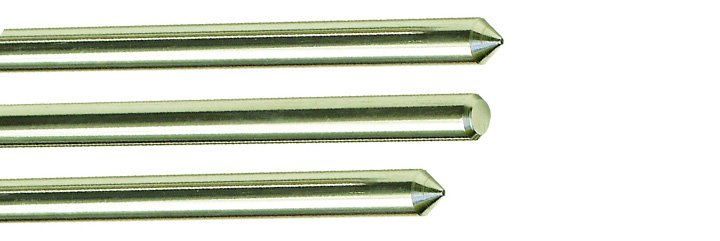

Earthing Stainless Steel Rod Manufacturer

Earthing Stainless Steel Rod Manufacturer

Veraizen Earthing are leading Earthing Stainless Steel Rod manufacturers in Mumbai India. Stainless steel rods are comparable to copper rods, however they are more anodic than copper and can be used in situations where galvanic corrosion is a concern. The stainless Steel Rod's current carrying capability in relation to copper is low. Each end of these rods has a tapped hole, allowing them to be linked together using a coupling dowel. Stainless Steel Rods, which are more anodic than copper and extremely resistant to corrosion, are recommended to overcome this condition. These rods are made of austenitic stainless steel grade 316, according to BS970.

Earthing Stainless Steel Rod Manufacturer, Supplier, Exporter in India

Stainless Steel Earth Rods are made of Stainless Steel Rod and are internally threaded for jointing, making them ideal for situations where galvanic corrosion could occur due to dissimilar metals being buried in close proximity. Earth Rods made of Stainless Steel are very corrosion resistant, and a variety of earth rod driving heads, spikes, dowels, and couplers are available. We also deal in Earthing Down Conductor.


Stainless Steel Earth Rods Specification

Model Number Earthing Rod
Length Of Rod as per requirement
Brand Renown Earth
Material SS
Color Silver
Diameter As per requirement
Shape As per requirement

Stainless Steel Earth Rods Dimension Chart

LENGTH (mm)
DIAMETER (mm)
INTERNAL THREAD (mm)
WEIGHT (kg)
PART NO.
1200
16
M10
1.87
ERSS1604
1500
16
M10
2.34
ERSS1605
1800
16
M10
2.81
ERSS1606
2400
16
M10
3.75
ERSS1608
3000
16
M10
4.69
ERSS1610
1200
20
M10
2.96
ERSS2004
1500
20
M10
3.65
ERSS2005
1800
20
M10
4.38
ERSS2006
2400
20
M10
5.84
ERSS2008
3000
20
M10
7.30
ERSS2010
1200
25
M10
4.89
ERSS2504
1500
25
M10
6.12
ERSS2505
1800
25
M10
7.34
ERSS2506
2400
25
M10
9.79
ERSS2508
3000
25
M10
12.24
ERSS2510

About Earthing Stainless Steel Rod

Earth rods are made of stainless steel and have good corrosion resistance in hostile environments, according to the BS EN 10088 standard. Stainless Steel Rods are ideally suited for earthing applications where galvanic corrosion between dissimilar metals buried in close proximity to one another is a concern, as well as highly corrosive soil conditions.

Earthing Stainless Steel Rod Uses

Earthing Stainless Steel Rod are widely used all over the world in different industries. Here are the top uses of Earthing Stainless Steel Rod -

  • It is important to note that certain soils and land fill areas may not be compatible with copper. In these situations, stainless steel represents a better option.
  • Stainless steel earth rods may also be an alternative, where structures or components, such as steel towers, poles or lead sheathed cables are in close proximity to an array of ground electrodes.
  • In these circumstances, consideration must be given to the consequence of galvanic corrosion.

Earthing Stainless Steel Rod Features

  • CPRI Tested
  • It is long-lasting and free from maintenance
  • Unique manufacturing process ensures uniform copper coating thickness
  • It is easy to install and is unbreakable
  • Corrosion free while providing the lowest resistance to ground
  • Variable choices are manufactured in order to meet the customers demand
  • Convenient installation and very beautiful appearance.
  • Purity of the copper is 99.9%. Thus the conduct ability is very good.

Earthing Stainless Steel Rod Advantages

  • Corrosion resistant surface
  • Excellent electrical and thermal conductivity
  • Advanced technology with effective engineering
  • Easy to install
